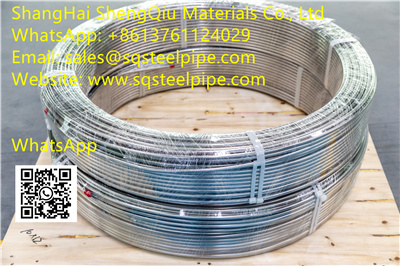

Stainless Steel Seamless Coil
Advantages of Products
By reducing the number of joints in the system, clean coil makes installation more convenient, especially in the case of vertical installation, the advantage is more obvious. Coil improves overall system integrity, reducing leakage risk and significantly reducing maintenance costs.
Reducing Joint
The number of clean coil joints is reduced, saving expensive joints or welding costs. At the same time, the possibility of leakage point is reduced, and the maintenance cost is also reduced. The system is more integrated and improves the security of system operation.
Convenient Transportation
Compact packaging of clean coil makes it easier to transport and store.
Product Usage Scenario
Stainless steel coil is widely used in hydraulic instrument lines, oil and gas underground control lines, chemical injection lines, steam tracing lines, pre-insulation lines, flue gas lines, heat exchanger pipes, umbilical cables, marine remote control systems. Ultra-pure gas pipeline, semiconductor clean pipeline and other fields. The surface of the coil can be coated with PVC for double corrosion protection.
Clean Coil — Standard Size Range (in.)
|
Size/inch |
Single reel length*M |
Size/inch |
Single reel length*M |
||
|
OD |
WT |
/ |
OD |
WT |
/ |
|
1/2 |
*0.035 |
340 |
3/4 |
*0.035 |
220 |
|
*0.049 |
250 |
*0.049 |
160 |
||
|
*0.065 |
200 |
*0.065 |
130 |
||
|
*0.083 |
160 |
*0.083 |
100 |
||
|
5/8 |
*0.035 |
270 |
1 |
*0.035 |
170 |
|
*0.049 |
200 |
*0.049 |
120 |
||
|
*0.065 |
150 |
*0.065 |
90 |
||
|
*0.083 |
120 |
*0.083 |
70 |
||
* The above are single disc seamless length, non-welded total length.
* Other specifications and lengths are available according to your requirements.
* The minimum length guaranteed by TP316/316L.
Clean Coil — Standard Size Range (metric)
|
Size/mm |
Single reel length*M |
Size/mm |
Single reel length*M |
||
|
OD |
WT |
/ |
OD |
WT |
/ |
|
12.0 |
*1.0 |
330 |
18.0 |
*1.0 |
200 |
|
*1.5 |
230 |
*1.5 |
150 |
||
|
*2.0 |
180 |
*2.0 |
110 |
||
|
14.0 |
*1.0 |
280 |
19.0 |
*1.0 |
200 |
|
*1.5 |
190 |
*1.5 |
140 |
||
|
*2.0 |
150 |
*2.0 |
110 |
||
|
16.0 |
*1.0 |
240 |
20.0 |
*1.0 |
190 |
|
*1.5 |
170 |
*1.5 |
130 |
||
|
*2.0 |
130 |
*2.0 |
100 |
||
* The above are single disc seamless length, non-welded total length.
* Other specifications and lengths are available according to your requirements.
* The minimum length guaranteed by TP316/316L.
Clean Coil — Grade of Material
|
Chinese Standard |
ASTM |
UNS |
EN steel No. |
|
0Cr18Ni9 |
304/ |
S30400/ |
1.4306/ |
|
022Cr19Ni10 |
304L |
S30403 |
1.4301 |
|
06Cr17Ni12Mo2 |
316/ |
S31600/ |
1.4435 |
|
022Cr17Ni12Mo2 |
316L |
S31603 |
|
|
06Cr17Ni12Mo2 |
316/ |
S31600/ |
1.4404 |
|
022Cr17Ni12Mo2 |
316L |
S31603 |
|
|
1Cr18Ni10Ti |
321/ |
S32100/ |
1.4541/ |
|
07Cr19Ni11Ti |
321H |
S32109 |
1.4940 |
|
06Cr17Ni12Mo3Ti |
316Ti |
S31635 |
1.4571 |
|
06Cr18Ni11Nb |
347/ |
S34700/ |
1.4550 |
|
07Cr18Ni11N |
347H |
S34709 |
1.4912 |
* Other brands are available according to your requirements
Clean Coil — Product Standard
|
Standard |
|
|
GB |
GB/T 13296 GB/T 14976 |
|
ASTM |
A213 A269 B163 B167 B668 A632 A789 A790 |
|
ASME |
SA213 SB163 SB167 SB668 SA789 SA790 |
|
NACE |
MR0 175 |
|
EN |
10216-5 TC1 |
* The coils are tested by air tightness and eddy current.
* Hydraulic test and ultrasonic detection can be added for special requirements.
