Application: In Industrial Construction, Machinery/Rack/Container manufacturing
Specification:
Square Hollow Section:
Outer diameter: 10mm*10mm - 500mm*500mm
Wall thickness: 0.5mm - 20mm
LENGTH: 5meters - 18meters
Rectangular Hollow Section:
Outer diameter: 10mm*20mm - 400mm*600mm
Wall thickness: 0.5mm - 20mm
LENGTH: 5meters- 18meters
Standard: ASTM A500, ASTM A53, EN 10210, EN 10219, JIS G 3466, BS 1387, BS 6323.
Process Type: Hot Rolled/Hot Expanded, Electric Resistance/High Frequency,Cold rolled , Annealed(welded),
End: Square Cut, Burr Removed
Surface: Bare, Black Painting, Lightly Oiled,Black annealing,Galvanized
Packing: Waterproof Paper Wrapped, Steel Strips Bundled, Two Tags on Each Bundle
Email:sales@sqsteelpipe.com
Whats App: 008613761124029
Skype:steelproducts
Wechat:137463635
Hollow section members can be circular, square, or rectangular sections, although other shapes are available, such as elliptical. Hollow section is only composed of structural steel per code.These sections are available with anti rust oil coating from inside & outside to ensure safe delivery to end customers.
Standard for hollow sections

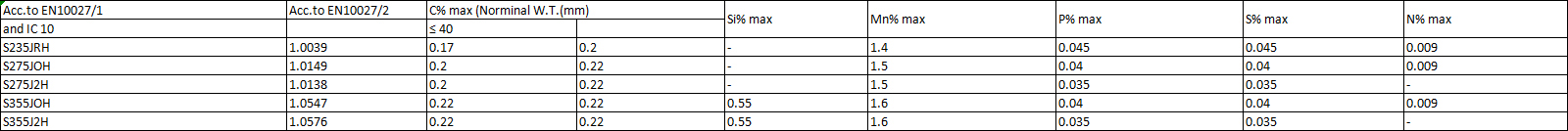

Chemical composition of material

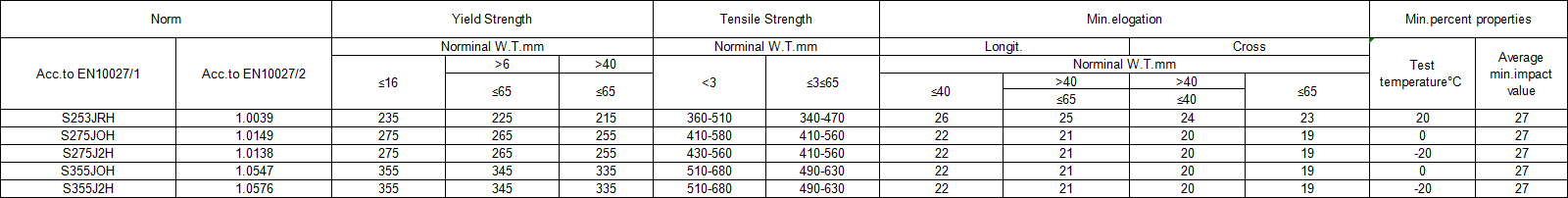

Mechanical properties of material

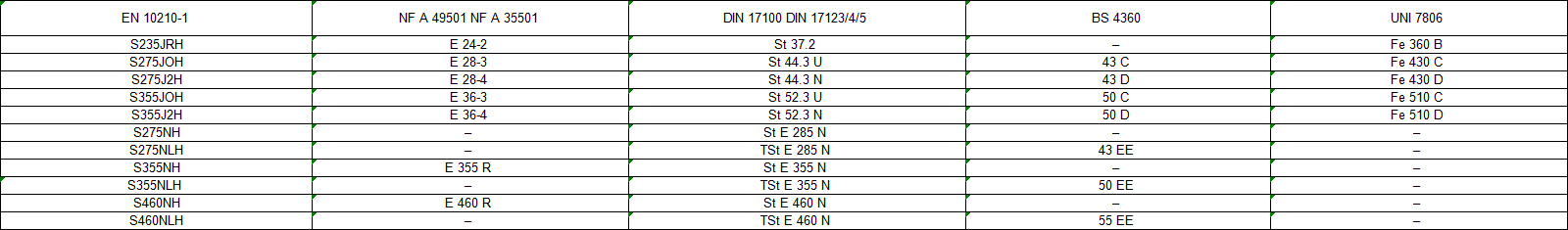

Equivalent specfications
– block letter "S" means "STEEL FOR STRUCTURAL APPLICATIONS"
– the next fi gure means the minim. yield value required for wall thickness ≤16 mm
– "J2" means impact test value -20° C min. 27 joule
– block letter "H" means "HOLLOW SECTION".
| Product Name | Carbon Hollow Section |
|---|---|
| Standards | ASTM, API, EN, DIN, JIS, GB or project-specific requirements, depending on product type and purchase order. |
| Materials / Grades | Carbon steel, stainless steel, alloy steel or other specified grades according to the selected product and customer requirements. |
| Size Range | Outside diameter, wall thickness and length are supplied according to the product specification, standard and order requirement. |
| Surface / Ends / Package | Oiled or unoiled surface, plain or beveled ends, bundled or bulk packing, subject to order requirements. |
Carbon Hollow Section can be used in oil and gas, petrochemical, power plant, boiler, construction, machinery, shipbuilding and general industrial pipeline projects, depending on the selected standard, grade and working condition.
Available inspection items include dimensional inspection, visual inspection, chemical composition analysis, mechanical testing, hydrostatic testing, ultrasonic testing, eddy current testing and other non-destructive tests when required by the standard or purchase order.
What information should I provide for a quotation?
Please send the product name, standard, grade, outside diameter, wall thickness, length, quantity, surface requirement, end type, packing requirement and destination port.
Can this product be supplied according to international standards?
Yes. Products can be supplied according to ASTM, API, EN, DIN, JIS, GB or other agreed project specifications.
Can inspection documents be provided?
Inspection documents and test reports can be provided according to the product standard and purchase order requirements.
