This news page covers alloy steel pipe in relation to ASTM A335 Grade P22 Alloy Steel Seamless Pipe. The content highlights standards such as ASTM A335 and size and dimension requirements, end-use applications. Buyers can use the page to check whether the product, grade, size range, inspection requirements and delivery details match their inquiry.

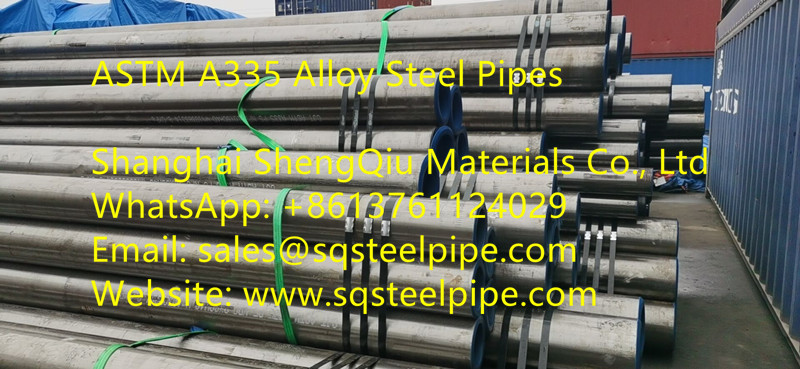

ASTM A335 Grade P22 Alloy Steel Seamless Pipe
O.D.: 10MM-720MM
W.T.:1MM-120MM
Length: Single Random, Double Random, 6-12meters
A335/SA335 Grade P22 Alloy Steel Seamless Pipes are Carbon steel pipes with addition of chromium, molybdenum, and sometimes vanadium. Chromium, or chrome, improves high-temperature strength, increases oxidation resistance and raises the tensile, yield and hardness at room temperatures. Molybdenum increases the strength, elastic limit, resistance to wear, impact qualities and hardenability. It increases the resistance to softening, restrains grain growth and makes chromium steel less susceptible to embrittlement. Moly is also the most effective additive for increasing high temperature creep strength, or creep resistance, and it also enhances the corrosion resistance of steel and inhibits pitting. Grade P22 is used for high temperature service applications and is tolerant to variations in its microstructure.
P22 Pipe Chemical Requirements:
• Carbon - 0.05% - 0.15%
• Manganese - 0.30% - 0.60%
• Phosphorus, max - 0.025%
• Sulfur, max - 0.025%
• Silicon, max – 0.50%
• Chromium - 1.90% - 2.60
• Molybdenum - 0.87% - 1.13%
P2 Pipe Specifications:
• Tensile strength, min, PSI, (MPa) – 60,000 (415)
• Yield Strength, min, (MPa) – 30,000 (205)
P22 Pipe Applications:
P22 is suitable for high temperature environments including those found in the following industries:
• Pharmaceutical equipment
• Chemical equipment
• Sea water equipment
• Heat exchangers
• Condensers
• Pulp and paper industry
• Off-shore oil drilling companies
• Power generation
• Petrochemicals
• Gas processing
• Specialty chemicals
Contact Shanghai ShengQiu Materials Co., Ltd to learn more about Chrome Moly Alloy Seamless P22 Pipe.
