AISI/SAE 4130 Seamless Alloy Steel Pipes: Specifications, Chemical Composition & Mechanical Properties

In demanding engineering applications—including oilfield downhole tools, aerospace components, motorsport roll cages, and high-pressure fluid systems—AISI/SAE 4130 seamless alloy steel pipes serve as a globally recognized standard. Renowned for their exceptional strength-to-weight ratio, fatigue resistance, and excellent weldability, 4130 alloy pipes deliver unyielding performance under intense pressure and impact.

This technical guide provides a detailed breakdown of ASTM A519 Grade 4130 seamless pipes, covering manufacturing standards, chemical composition limits, and mechanical properties under various heat-treatment conditions to help global buyers make informed procurement decisions.

1. What is AISI/SAE 4130 Alloy Steel? Standards & Core Applications

Material Definition & Classification

AISI/SAE 4130 (often referred to simply as 4130 Chromoly) is a versatile medium-carbon alloy steel enriched with Chromium and Molybdenum. The addition of these elements provides enhanced hardenability, tough microstructure stability, and high fatigue endurance compared to standard carbon steel tubing.

Manufacturing Standards & Specification Compliance

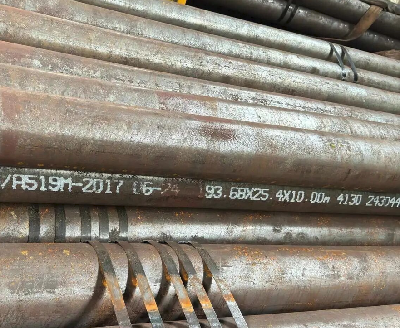

For international trade and export orders, seamless AISI 4130 steel pipes are primarily manufactured and accepted in accordance with ASTM A519 / A519M. This specification covers seamless carbon and alloy steel mechanical tubing, establishing strict requirements for dimensional tolerances, surface finish, and metallurgical testing.

Key Heat Treatments & Processing

To achieve high purity, uniformity, and dimensional accuracy, premium 4130 tubing undergoes precision hot-rolling, cold-drawing, or cold-rolling. Pipes are typically delivered in one of the following heat-treated conditions:

·Full Annealed (A)

<!  ·Normalized & Tempered (N+T)

<!  ·Quenched & Tempered (Q+T / Heat Treated)

Key Industrial Applications

Thanks to its superior toughness under pressure and shock loads, ASTM A519 4130 seamless tubing is widely utilized across:

·Oil & Gas Equipment: Downhole tools, pressure manifolds, drill collars, and high-pressure flowlines.

<!  ·Aerospace & Defense: Helicopter rotor shafts, structural airframe tubing, and landing gear parts.

<!  ·Automotive & Racing: FIA-spec motorsport roll cages, suspension arms, and chassis frames.

<!  ·Mechanical Machinery: Hydraulic cylinders, heavy equipment bushings, and drive shafts.

2. Chemical Composition Breakdown of AISI/SAE 4130 Alloy Steel

The core "strengthening code" of 4130 alloy steel lies in the precise ratio of Chromium (Cr) and Molybdenum (Mo), which significantly improves hardenability and thermal stability.

3. Mechanical Properties of ASTM A519 4130 Seamless Pipes

Mechanical properties vary depending on the chosen heat treatment condition. Below are typical mechanical values for Annealed and Normalized & Tempered supply conditions (Quenched & Tempered properties can be customized via technical agreements):

Note: Final mechanical properties (including Charpy V-Notch impact toughness) can be custom-tailored based on buyer technical agreements.

Sourcing Certified 4130 Tubing from Shanghai ShengQiu Materials Co., Ltd.

At Shanghai ShengQiu Materials Co., Ltd., we adhere strictly to the latest ASTM A519/A519M specifications and specialized customer agreements. From vacuum-degassed billets to 100% non-destructive testing (NDT), we deliver fully certified AISI/SAE 4130 seamless alloy pipes engineered for maximum safety and durability.

·Complete Quality Traceability: Fully backed by EN 10204 3.1 / 3.2 Mill Test Certificates (MTC).

<!  ·Custom Processing: Precision cold-drawing, custom length cutting, and heat treatments (Q+T / N+T) available.

<!  ·Global Shipping: Fast, reliable export handling for oilfield, aerospace, and industrial projects worldwide.

Partner with a Reliable Steel Pipe Supplier Today!

We don't just supply steel pipes—we deliver professional, worry-free engineering solutions for your business!
