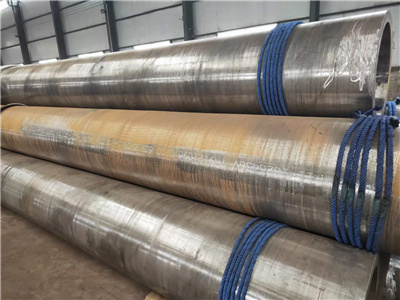

SAE/AISI 4140 seamless steel pipes
strictly conform to the ASTM A519 / A519M standard
(2) Main Manufacturing Process
& Key Quality Control Metrics
The manufacturing process for ASTM
A519 AISI/SAE 4140 seamless steel pipe encompasses core steps including billet selection, heating, piercing,
rolling, sizing, heat treatment, finishing, and non-destructive testing (NDT). Crucial technical quality metrics
focus on dimensional tolerances, surface quality, mechanical integrity, and
precise chemical compliance. Precision heat treatment (such as
Quenching & Tempering or Annealing) is strictly controlled to ensure
optimal strength and toughness while minimizing impurities for demanding
overseas applications.
(3) Key Applications &
Industrial Uses
Renowned for its outstanding comprehensive mechanical properties, high fatigue resistance, and excellent hardenability, SAE/AISI 4140 seamless alloy steel pipe is widely deployed across:
· Petroleum & Oilfield Machinery:
Drill collars, heavy-duty drill pipes, and downhole tool components.
<! · Construction
& Heavy Equipment: High-strength structural
components, hydraulic cylinder tubes, and pinions.
· Automotive
& Aerospace Engineering: Transmission shafts, drive
axles, and heavy-load structural tubing.
The chemical composition of AISI/SAE
4140 seamless alloy tubing strictly adheres to the ASTM A519 / A519M specification, detailed in the table below:
|
Chemical Element |
Composition Range (wt %) |
Governing Standard |
|
Carbon (C) |
0.38 – 0.43 |
ASTM A519 / A519M |
|
Manganese (Mn) |
0.75 – 1.00 |
ASTM A519 / A519M |
|
Silicon (Si) |
0.15 – 0.35 |
ASTM A519 / A519M |
|
Phosphorus (P) |
≤ 0.025 |
ASTM A519 / A519M |
|
Sulfur (S) |
≤ 0.025 |
ASTM A519 / A519M |
|
Chromium (Cr) |
0.80 – 1.10 |
ASTM A519 / A519M |
|
Molybdenum (Mo) |
0.15 – 0.25 |
ASTM A519 / A519M |
The table below presents the core
mechanical property requirements for SAE/AISI 4140 seamless steel pipe under ASTM A519 / A519M (typically in
Quenched & Tempered / Heat-Treated condition):
|
Property Parameter |
Standard Requirement |
Technical Remarks / Standard Reference |
|
Yield Strength (0.2% Proof
Stress) |
≥551 MPa(80 ksi) |
ASTM A519 / A519M |
|
Tensile Strength |
≥855 MPa(120 ksi) |
ASTM A519 / A519M |
|
Elongation |
≥15%(Gage Length 50mm / 2 in) |
ASTM A519 / A519M |
|
Impact Energy |
≥27J(Charpy V-Notch) |
ASTM A519 / A519M |
|
Hardness |
≤297HBW |
ASTM A519 / A519M |
Professional Achievements
Quality, Service Creates Value!
Shanghai Shengqiu
strictly adheres to the latest ASTM A519/A519M standard
specifications and custom technical agreements to supply premium-grade American
Standard AISI/SAE 4140 seamless alloy steel
pipes & mechanical tubing.
<! · Full Quality Traceability:
Every batch is provided with complete Mill Test Certificates and full NDT
inspection reports.
<! · Global
Shipping & Flexible MOQ: Export-ready packaging with
competitive price-per-ton and fast delivery schedules.
Looking for AISI 4140 stock
lists, MTC samples, or an immediate price quote?
Contact our technical sales engineers today or send us your
inquiry directly!
